Page Replacement Algorithms in OS (Operating Systems)

In the world of multitasking operating systems, memory management is crucial for maintaining performance and efficiency. One of the core mechanisms behind memory management is the Page Replacement Algorithm, which helps an operating system decide which memory pages to swap out when new pages are needed. This article provides a deep dive into page replacement in operating system, covering the concept, types, strategies, and real-world examples to help you understand how these algorithms play a vital role in systems performance.

What is Page Replacement in OS?

To understand what is page replacement in OS, we must first understand the concept of paging. In operating systems, paging is a memory management scheme that eliminates the need for contiguous allocation of physical memory. The OS loads processes into memory in fixed-size blocks called pages. However, when the memory is full and a new page needs to be loaded, the OS must choose an existing page to remove and make space. This selection process is known as page replacement.

So, what is page replacement? It is a technique used to manage how memory pages are swapped between main memory (RAM) and secondary storage (usually disk), especially when there is a shortage of physical memory.

Here are related lessons for more insights:

• List of Operating System
• Types of Operating System
• Generations of Operating Systems
• Advantages of Operating System

Why do We Need Page Replacement?

Page replacement becomes necessary when:

• The physical memory is full.
• A new page needs to be loaded.
• The page is not currently in memory (a page fault occurs).
• The OS needs to choose a victim page to evict.

Efficient page replacement strategies in OS can drastically improve performance by reducing the number of page faults and disk I/O operations.

What is Page Replacement Algorithm in OS?

The page replacement algorithm in OS determines which page to replace when a new page must be loaded into memory. The goal of a page replacement algorithm is to minimize the number of page faults.

In essence, what is page replacement algorithm in OS? It is a set of rules or logic used by the OS to select the victim page when physical memory is full.

Types of Page Replacement Algorithms in OS

There are several types of page replacement algorithms in OS, each with its own strengths and weaknesses. Below are the most commonly used page replacement algorithms in practice.

1. FIFO (First-In, First-Out) Page Replacement

The FIFO page replacement algorithm is the simplest strategy. It maintains a queue of pages in memory, and when a replacement is needed, the page that has been in memory the longest (the front of the queue) is removed.

Advantages:

• Simple to implement.
• Requires minimal overhead.

Disadvantages:

• May replace frequently used pages.
• Can lead to Belady’s Anomaly (more frames may lead to more page faults).

Example: If the page reference string is: 7, 0, 1, 2, 0, 3, 0, 4, and frame size is 3, the FIFO algorithm will remove the oldest page regardless of its future use.

2. LRU (Least Recently Used) Page Replacement

The LRU algorithm replaces the page that has not been used for the longest time. It assumes that pages used recently will be used again soon.

Advantages:

• More efficient than FIFO in many cases.
• Based on realistic assumptions about usage.

 Disadvantages:

• Requires hardware support or additional data structures.
• Slightly more complex to implement.

 Implementation:

• Use of counters or stacks to track usage.
• Linked list or timestamp-based tracking.

3. Optimal Page Replacement

This is a theoretical algorithm that replaces the page that will not be used for the longest time in the future.

Advantages:

• Produces the lowest number of page faults.

Disadvantages:

• Not implementable in practice (requires future knowledge).
• Used only for benchmarking.

Use Case: It serves as a benchmark to evaluate the performance of other page replacement algorithms in OS.

4. Clock Page Replacement Algorithm

Also known as the Second-Chance algorithm, the clock algorithm maintains a circular list (like a clock). Each page has a reference bit.

Working:

• When a page is loaded, the reference bit is set to 1.
• The clock hand sweeps through; if it finds a page with a reference bit of 0, it replaces it.
• If the bit is 1, it resets it and skips to the next.

Advantages:

• Efficient approximation of LRU.
• Requires less overhead.

5. LFU (Least Frequently Used)

The LFU algorithm replaces the page with the smallest count of usage over time.

Advantages:

• Keeps frequently used pages in memory.

Disadvantages:

• It can be unfair to pages used heavily in the past.
• Requires tracking usage frequency.

6. MFU (Most Frequently Used)

Contrary to LFU, the MFU algorithm replaces the page with the highest frequency count, assuming it’s been used so much it won’t be needed soon.

Use Cases:

• Rarely used in practice.
• It can be useful in some specific workloads.

Comparison of Page Replacement Algorithms

Page Replacement Strategies in OS

Various page replacement strategies in OS are used depending on system requirements and available resources. The two main approaches are:

a. Global Replacement

In a global strategy, any page in memory can be replaced regardless of which process owns it.

• Pros: Higher throughput.
• Cons: Can cause starvation of processes.

b. Local Replacement

Each process has its own set of frames. Pages are replaced within the local set.

• Pros: Fairer, better process isolation.
• Cons: Might increase overall page faults.

Page Fault and Its Impact

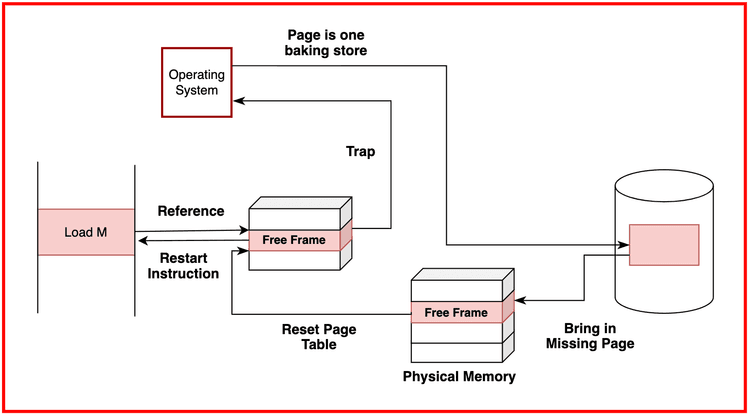

When the required page is not in memory, a page fault occurs. Handling a page fault involves:

• Stopping the process.
• Finding a free frame (or replacing an existing page).
• Loading the new page from disk.
• Resuming execution.

Frequent page faults, known as thrashing, can significantly degrade performance. Choosing the right page replacement algorithm in operating system helps reduce thrashing.

Real-World Application of Page Replacement Algorithms

Operating systems like Linux, Windows, and macOS use variants or combinations of these algorithms:

• Linux uses the Clock-Pro algorithm, a variant of LRU.
• Windows uses a combination of working set-based algorithms.
• macOS also uses LRU-style strategies optimized for application behavior.

Understanding page replacement algorithms is essential for systems developers, OS designers, and anyone interested in improving software performance.

How to Choose the Right Algorithm?

Factors to consider when selecting a page replacement algorithm:

• Workload patterns: LRU is great for temporal locality, while LFU is better for frequency-based access.
• System resources: More complex algorithms require more memory and processing.
• Performance goals: Optimal vs practical balance.
• Hardware support: Some algorithms need specific hardware-level tracking.

Related articles to read:

• Architecture of Operating System
• Booting in Operating System
• Segmentation in OS
• Process Synchronization in OS
• What is Deadlock in OS

Conclusion

In summary, page replacement in operating system is a core mechanism that enables efficient memory utilization in a multitasking environment. Whether it’s FIFO, LRU, Clock, or more advanced strategies, each page replacement algorithm in OS has its place depending on the system goals and workload.

Understanding how it functions, and the types of page replacement algorithms in OS helps you design smarter, faster, and more reliable software systems.

With memory being a critical bottleneck in computing, mastering these algorithms is essential for optimizing performance, minimizing delays, and ensuring that applications run smoothly under various loads.
